Airtightness testing can tell a project team how much air is leaking through a building envelope, but it does not always show exactly where those leaks are. For projects that start with Large Building Airtightness Testing, ASTM E1186 can become the next practical step: locating the leakage paths that need attention.
ASTM E1186 is useful because building air leakage is rarely caused by one obvious hole. It often comes from small discontinuities around windows, doors, roof transitions, service penetrations, air-barrier joints, shafts and construction interfaces. Individually, those leaks may seem minor. Together, they can affect comfort, energy use, moisture control and building durability.
This guide explains what ASTM E1186 is, how it works, which diagnostic methods it includes and how it supports better decisions during construction, commissioning and retrofit projects.
What Is ASTM E1186?
ASTM E1186 is formally titled Standard Practices for Air Leakage Site Detection in Building Envelopes and Air Barrier Systems. The current ASTM listing identifies it as ASTM E1186-22. Its purpose is to provide field practices for locating specific air leakage sites in building envelopes and air barrier systems.
In simple terms, ASTM E1186 helps answer this question:
Where is air actually leaking through the envelope?
That makes it different from quantitative airtightness standards such as ASTM E3158 and ASTM E779. Those standards measure the amount of leakage through a defined test boundary. ASTM E1186 focuses on finding leakage locations so they can be evaluated, repaired and retested where needed.
The standard can be applied to building envelopes, air-barrier systems, assemblies and components. It is often used when a project team suspects leakage but needs a more systematic way to locate the problem areas.
What ASTM E1186 Does and Does Not Do
ASTM E1186 is a diagnostic standard. It helps identify likely leakage sites, but it does not replace whole-building air leakage measurement.
It can help locate issues such as:
- Discontinuous air-barrier transitions
- Poorly sealed window or door perimeters
- Open joints between assemblies
- Gaps around ducts, pipes and conduits
- Leakage at roof-wall or floor-wall interfaces
- Defects hidden behind finishes or adjacent materials
- Unsealed penetrations created during construction
It does not:
- Calculate the total leakage rate of a building
- Establish a pass/fail airtightness target
- Replace ASTM E3158, ASTM E779 or ASTM E1827
- Prove that every leak has been found
- Assign an exact airflow value to each leakage site
- Predict exact energy savings after repair
This distinction matters. A building may fail an airtightness requirement because total measured leakage is too high. ASTM E1186 can help the team move from “the building leaks too much” to “these are the locations that need investigation and repair.”
Why Air Leakage Detection Matters
Air leakage is not only an energy issue. It can also affect indoor comfort, mechanical-system performance and long-term durability.
When uncontrolled air moves through the envelope, it may carry heat, moisture, dust and contaminants. In cold weather, warm indoor air can move into cooler assemblies and create condensation risk. In warm or humid conditions, outdoor air may enter conditioned spaces and increase cooling or dehumidification loads.
Leakage can also make a building feel less consistent. One suite, room or floor may experience drafts while another area seems stable. Mechanical systems may work harder to maintain comfort because the envelope is not controlling airflow as expected.
From a construction standpoint, leakage detection is valuable because it helps teams avoid broad, inefficient repair efforts. Instead of resealing everything, technicians can identify the most likely leakage paths and help contractors focus their work.
For high-performance buildings, Net Zero projects, Passive House-inspired designs and commissioned building envelopes, this level of diagnostic work is often essential. Airtightness targets are only useful when the team can respond effectively if the building does not meet them.
How Does ASTM E1186 Air Leakage Detection Work?
ASTM E1186 methods are generally used under controlled pressure conditions. Air leakage is easier to observe when there is a pressure difference across the area being investigated.
That pressure difference may be created by a fan system, a temporary test chamber, a blower door setup or other project-appropriate equipment. ASTM notes that pressurized or depressurized test chambers with smoke tracer methods, or depressurized chambers with leak detection liquid, may be used where pressurizing or depressurizing an entire envelope is impractical, such as during construction.

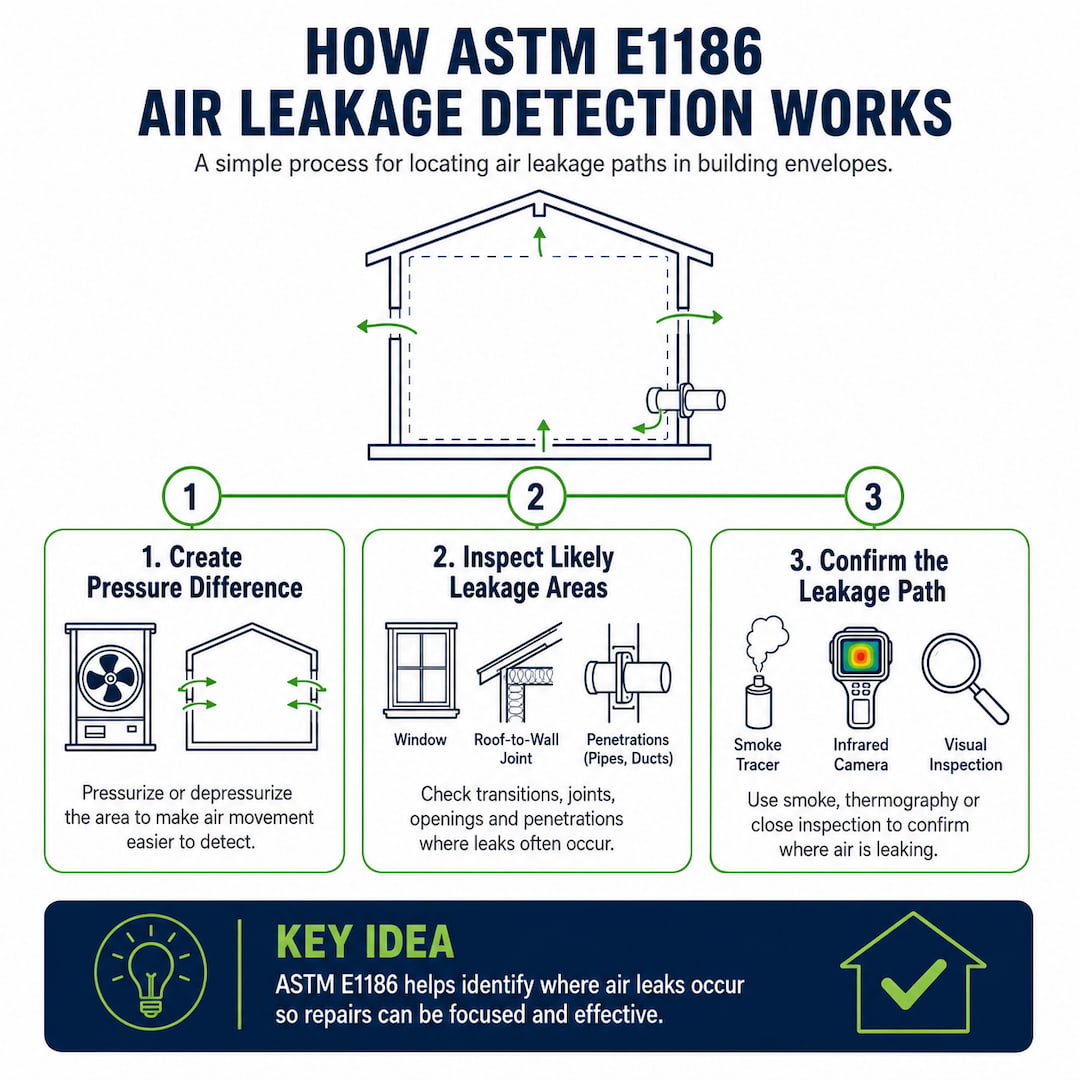

The basic process usually follows three steps.
1. Create controlled airflow conditions
The technician first creates or uses a pressure difference across the test area. This encourages air to move through cracks, gaps or discontinuities.
The pressure does not need to represent normal weather. Its purpose is to make leakage paths easier to detect in a controlled and repeatable way.
2. Inspect likely leakage locations
The technician then examines parts of the envelope where leakage is likely to occur.
Common inspection areas include:
- Window and curtain-wall interfaces
- Exterior door frames and thresholds
- Roof-to-wall transitions
- Balcony or slab-edge connections
- Mechanical and electrical penetrations
- Air-barrier membrane joints
- Sealant transitions
- Cladding support penetrations
- Loading doors and service openings
- Construction joints and material changes
Many leakage sites occur at transitions rather than in the middle of a material. For example, a membrane may be airtight, but the connection between that membrane and a window frame may not be complete.
3. Confirm the leakage path
The goal is not only to see movement, but to understand whether the observed condition is a meaningful air leakage path.
Depending on the method used, the technician may look for smoke movement, temperature patterns, visible openings, pressure response, audible airflow or localized air movement.
The best diagnostic work connects the observation to a practical repair question:
What failed, where did it fail and how can it be sealed without creating another problem?
ASTM E1186 Air Leakage Detection Methods
ASTM E1186 includes multiple practices because no single method is ideal for every building condition. The right approach depends on access, construction stage, building type, weather, pressure conditions and the suspected leakage location.
Smoke tracer testing
Smoke tracer testing is one of the most understandable methods for non-specialists.
When the building or test area is pressurized or depressurized, smoke is released near suspected leakage locations. If air is moving through a gap, the smoke direction can reveal the airflow path.
Smoke can be useful around:
- Window perimeters
- Door frames
- Wall joints
- Penetrations
- Air-barrier transitions
- Roof interfaces
Its main advantage is immediate visual feedback. Contractors, owners and consultants can often see the problem directly.
Its limitation is access. Smoke testing works best when the suspected leakage location can be reached and observed. It may not reveal hidden leakage behind finishes unless the air path becomes visible at an accessible point.
Infrared thermography
Infrared thermography uses a thermal camera to show surface temperature patterns. These patterns may indicate air movement, missing insulation, thermal bridging or moisture-related concerns.
Thermography can be especially useful when air leakage creates temperature differences across a wall, ceiling, window interface or other assembly.
However, thermal imaging does not directly “see” air. It sees surface temperature differences. Those differences must be interpreted carefully by someone who understands building science, weather conditions, pressure conditions and material behaviour.
A thermal pattern may suggest leakage, but it may also be caused by insulation defects, framing, moisture, solar exposure or thermal bridging. That is why thermography is strongest when combined with pressure testing, visual review and other diagnostic methods.
Visual inspection and airflow observation
Some leakage paths can be identified through careful inspection, especially during construction.
A technician may find:
- Missing sealant
- Incomplete membrane laps
- Unsealed fastener penetrations
- Gaps around pipes or ducts
- Misaligned gaskets
- Open joints behind removable covers
- Poorly sealed transitions between trades
This method relies heavily on experience. Many defects look small but have a large effect because they connect directly to a pressure boundary.
Sound and acoustic methods
Some leakage paths create audible airflow when pressure conditions are strong enough. Acoustic methods may help identify hidden openings, especially around joints or hard-to-access areas.
Sound detection is usually a supporting method rather than the only diagnostic approach. It can help guide further inspection but should be confirmed with other evidence where possible.
Localized chambers and leak detection liquids
Where testing a full building or large area is not practical, localized test chambers can be used to evaluate specific assemblies or areas. ASTM E1186 references pressurized or depressurized test chamber practices, including smoke tracer and leak detection liquid approaches, for situations where whole-envelope pressure testing is impractical during construction.
This can be useful for targeted investigation of a façade section, joint, component or assembly before the whole building is complete.
ASTM E1186 Compared with Related Standards
| Standard | Main Purpose | Main Question |
|---|---|---|
| ASTM E1186 | Detects air leakage sites in envelopes and air barrier systems. | Where are the leaks? |
| ASTM E3158 | Measures air leakage rate in large or multizone buildings using fan-induced pressure differences. | How much does the large or multizone building leak? |
| ASTM E779 | Determines air leakage rate by fan pressurization. | What is the envelope leakage rate under controlled pressure? |
| ASTM E1827 | Measures building air change using an orifice blower door. | How airtight is the tested single-zone building or zone? |
ASTM E3158 is specifically written for large or multizone buildings and covers quantitative field testing using blower doors or equivalent fan equipment. ASTM E779 is a fan pressurization method for determining building air leakage rate. ASTM E1186 fits into the workflow when the team needs to move from measurement to diagnosis.
A common sequence is:
- Measure total leakage.
- Compare the result with the project target.
- Use diagnostic methods to locate leakage sites.
- Repair the problem areas.
- Retest if compliance verification is required.
Example: Using ASTM E1186 After a Failed Airtightness Test
Imagine a newly completed multi-family building undergoing final envelope testing.
The measured leakage rate is above the project requirement. The report confirms that too much air is crossing the test boundary, but the number itself does not identify the source.
The diagnostic team then creates controlled pressure conditions and begins investigating likely leakage locations.
Smoke testing shows air movement around several window transitions. Infrared thermography reveals unusual temperature patterns near a roof-to-wall interface. Visual inspection finds an unsealed mechanical penetration in a service area.
None of these observations alone explains the entire failed test. But together, they give the construction team a focused repair plan.
Instead of opening large areas unnecessarily, the team can correct specific details, seal penetrations, review the air-barrier transitions and then verify improvement through follow-up testing.
This is the practical value of ASTM E1186: it helps convert leakage data into actionable repairs.
Common Air Leakage Locations
Air leakage is most likely where materials, assemblies or trades meet.
Windows and exterior doors
Window and door perimeters are common leakage locations because they require precise connections between frames, flashings, membranes, sealants and adjacent wall assemblies.
Problem areas may include:
- Frame-to-wall connections
- Sill transitions
- Head flashings
- Door thresholds
- Gasketed joints
- Curtain-wall interfaces
Roof and wall transitions
Roof-to-wall transitions are critical because they often combine structural, waterproofing, insulation and air-barrier details.
Leakage may occur where membranes are interrupted, poorly overlapped or not connected continuously to the wall air barrier.
Mechanical and electrical penetrations
Pipes, ducts, conduits, vents and sleeves often pass through the pressure boundary. Each penetration must be sealed in a way that remains durable and compatible with movement, firestopping and weather protection requirements.
Shafts, risers and service spaces
Elevator shafts, stairwells, risers and service rooms can connect multiple levels. Leakage in these areas can influence pressure distribution and allow air movement between floors or zones.
Construction joints and material transitions
Many air-barrier problems occur where one material stops and another begins. Examples include concrete-to-framing transitions, sheathing-to-window transitions, wall-to-slab interfaces and temporary openings that were not fully restored.
Limitations of ASTM E1186
ASTM E1186 is powerful, but it should be used with realistic expectations.
It cannot guarantee that every air leak will be found. Access limitations, hidden cavities, weather, pressure conditions and construction sequencing can all affect what is visible during investigation.
It also cannot determine the exact airflow contribution of each individual leakage site unless additional localized measurement is performed. A visible smoke movement pattern may indicate leakage, but it does not automatically quantify how much that leak contributes to the total result.
Diagnostic interpretation also requires experience. A thermal image, smoke movement or visible opening must be understood in the context of the building assembly. Misinterpreting the evidence can lead to repairs that do not solve the underlying problem.
For complex buildings, ASTM E1186 should be part of a broader building-science approach that includes document review, site observation, pressure testing, envelope knowledge and clear communication with the construction team.
When Should ASTM E1186 Be Used?
ASTM E1186 methods may be useful at several stages of a project.
During construction
Diagnostic review can be performed before critical transitions are hidden by finishes. This is often the best time to find and correct air-barrier issues because access is still available.
After a failed airtightness result
When a building does not meet its leakage target, diagnostic testing can help identify the most likely repair locations and avoid unfocused sealing work.
During commissioning
Envelope commissioning may include both quantitative performance testing and qualitative leakage investigation. The combination helps verify performance and document construction quality.
During retrofits
Existing buildings often contain unknown leakage paths. ASTM E1186 methods can help prioritize improvements before renovation work begins or confirm whether completed work has addressed the main issues.
Planning Air Leakage Diagnostics with an Expert
Finding air leaks is not just a matter of owning the right equipment. It requires understanding pressure boundaries, building assemblies, thermal patterns, sequencing and the difference between a visible symptom and the actual leakage path.
For complex envelope diagnostics, consult Shahin Arvandi, Founder of Monolith Housing Solutions. He is a Certified Air Tester and Certified Thermographer with more than 15 years of experience in energy-efficient construction, Net-Zero housing, building commissioning and high-performance building design. His profile also lists certifications and credentials including CEM, LEED AP, Heat Loss and Heat Gain Calculations, Certified Building Commissioning Professional, Energy Large Building Training and Net-Zero Energy Advisor.
Early involvement can help determine whether the project needs whole-building measurement, localized leakage detection, infrared diagnostics, smoke testing or a combined approach.
Conclusion
ASTM E1186 helps project teams find the air leakage sites that may be affecting envelope performance. It does not replace quantitative airtightness testing, and it does not set a universal compliance target. Its role is diagnostic.
Used correctly, it helps locate leakage paths, guide targeted repairs and support better decisions during construction, commissioning and retrofit work.
For owners, designers and contractors, the main takeaway is simple: measuring leakage tells you whether the building meets the required performance level. ASTM E1186 helps show where to look when the envelope needs improvement.
Frequently Asked Questions
What is ASTM E1186?
ASTM E1186 is a standard practice for detecting air leakage sites in building envelopes and air barrier systems. It helps identify where air is passing through the envelope.
Does ASTM E1186 measure total air leakage?
No. ASTM E1186 is used to locate leakage sites. Quantitative standards such as ASTM E3158 or ASTM E779 are used to measure the total air leakage rate of a defined test boundary.
Can infrared thermography find air leaks?
Infrared thermography can identify temperature patterns that may indicate air leakage, especially under suitable pressure and temperature conditions. It should be interpreted with building-science knowledge and often works best with other diagnostic methods.
Is smoke testing part of air leakage detection?
Yes. Smoke tracer methods can help show airflow direction at joints, penetrations, window interfaces and other suspected leakage locations when a pressure difference is present.
Can ASTM E1186 replace a blower door test?
No. It is not a replacement for a quantitative fan pressurization test. It is a diagnostic method used to find leakage locations.
When should leakage detection be done?
It can be done during construction, after a failed airtightness test, during commissioning or during retrofit planning. The best timing depends on access, project requirements and whether repair work can still be completed efficiently.
Does ASTM E1186 provide a pass or fail result?
Not in the same way as a leakage-rate requirement. ASTM E1186 helps identify leakage locations; pass or fail criteria normally come from a separate airtightness specification or performance requirement.
Can ASTM E1186 find every air leak?
No diagnostic method can guarantee that every leak will be found. Results depend on access, pressure conditions, weather, technician experience and the complexity of the building envelope.
